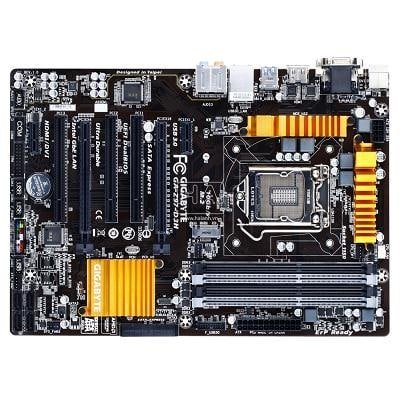

Bo mạch chủ Gigabyte Z97-D3H

Mô tả chi tiết

Hãng sản xuất

GIGABYTE

Chủng loại

Z97-D3H

CPU hỗ trợ

Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^®Pentium^® processors/ Intel^®Celeron^® processors in the LGA1150 packageL3 cache varies with CPU (Please refer “CPU Support List” for more information.)

Chipset

Intel^® Z97 Express Chipset

Bộ nhớ trong

DDR3 1600/1333 MHz (Up to 3100Mhz – OC) , 4 x 1.5V supporting up to 32GB

VGA onboard

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz

* Support for HDMI 1.4a version.

Maximum shared memory of 1 GB

Card mạng

Intel^® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

Realtek^® ALC1150 codec / High Definition Audio / 2/4/5.1/7.1-channel / Support for S/PDIF Out

Khe mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(The PCIEX4 and the PCI Express x1 slots conform to PCI Express 2.0 standard.)

3 x PCI slots

Support for 2-Way AMD CrossFire™ technology

Chuẩn lưu trữ

1 x M.2 PCIe connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)

1 x SATA Express connector

6 x SATA 6Gb/s connectors (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Cổng giao tiếp trước và sau

1 x PS/2 keyboard/mouse port / 1 x D-Sub port /1 x DVI-D port / 1 x HDMI port / 4 x USB 3.0/2.0 ports / 2 x USB 2.0/1.1 ports / 1 x RJ-45 port /6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Công nghệ tích hợp

Dual-BIOS , APP Center , @BIOS ,EasyTune , EZ Setup , Fast Boot ,Game Controller ,ON/OFF Charge ,Smart TimeLock , Smart Recovery 2 ,System Information Viewer ,USB Blocker , Q-Flash , Smart Switch ,Xpress Install , Cloude Station , Lan Optimizer , Intel SBA.

Kích thước

ATX Form Factor; 30.5cm x 21.4cm

Phụ kiện đi kèm

(Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main ….)
