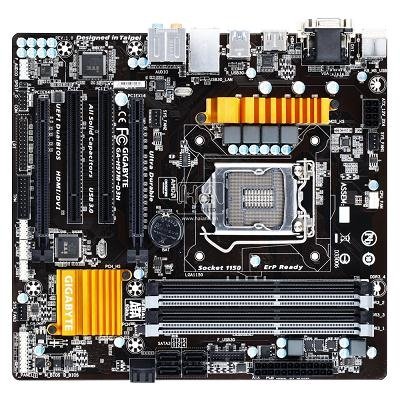

Bo mạch chủ Gigabyte H97M-D3H

Mô tả chi tiết

Hãng sản xuất

GIGABYTE

Chủng loại

H97M-D3H

CPU hỗ trợ

Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^®Pentium^® processors/ Intel^®Celeron^® processors in the LGA1150 packageL3 cache varies with CPU (Please refer "CPU Support List" for more information.)

Chipset

Intel^® H97 Express Chipset

Bộ nhớ trong

DDR3 1600/1333 MHz, 4 x 1.5V supporting up to 32GB

VGA onboard

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
* Support for HDMI 1.4a version.

Maximum shared memory of 1 GB

Card mạng

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

Realtek^® ALC892 codec / High Definition Audio / 2/4/5.1/7.1-channel / Support for S/PDIF Out

Khe mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI slots
Support for 2-Way AMD CrossFire™ technology

Chuẩn lưu trữ

6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Cổng giao tiếp trước và sau

1 x PS/2 keyboard/mouse port / 1 x D-Sub port /1 x DVI-D port / 1 x HDMI port / 4 x USB 3.0/2.0 ports / 2 x USB 2.0/1.1 ports / 1 x RJ-45 port /6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Công nghệ tích hợp

Dual-BIOS , APP Center , @BIOS ,EasyTune , EZ Setup , Fast Boot ,Game Controller ,ON/OFF Charge ,Smart TimeLock , Smart Recovery 2 ,System Information Viewer ,USB Blocker , Q-Flash , Smart Switch ,Xpress Install , Cloude Station , Lan Optimizer , Intel SBA.

Kích thước

Micro ATX Form Factor; 24.4cm x 22.5cm

Phụ kiện đi kèm

(Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main ….)
